Compact Cell Imager with Fluorescence, 1.2 mm field of view
Compact-Cell-Imager-with-Fluorescence-2-iolight
Compact-Cell-Imager-with-Fluorescence-4-iolight

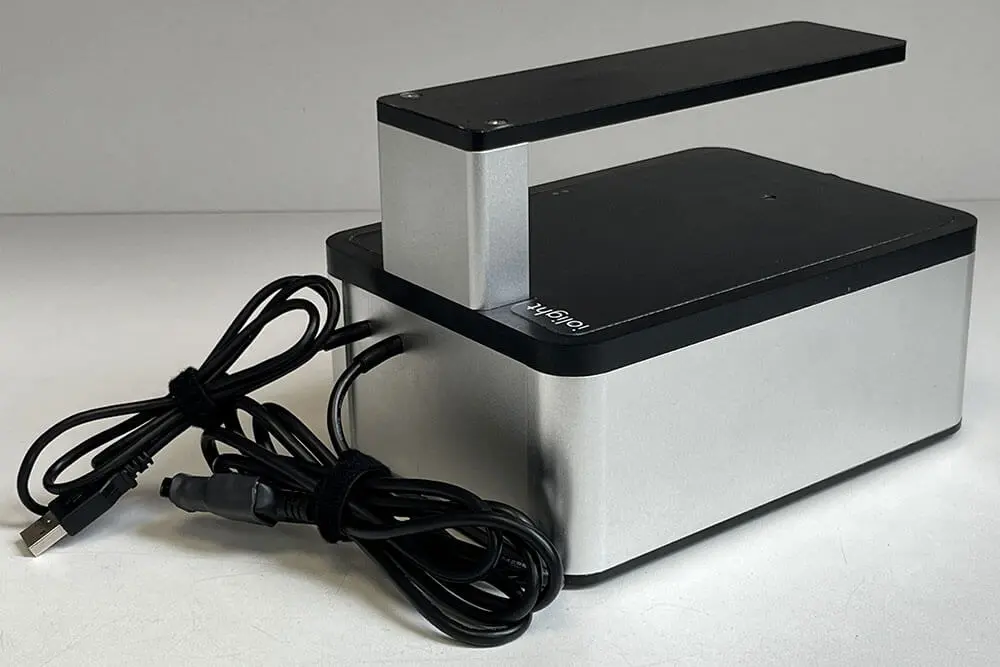

Rear-side-of-Compact-Cell-Imager
HELA-Fluorescent-cells-iolight

Full Quality Images

To download full quality images please click the button or go to the Gallery menu and choose ‘Image Downloads’.

Download Images

Reviews

Reviews

There are no reviews yet.

Be the first to review “Compact Cell Imager with Fluorescence, 1.2 mm field of view”

Your email address will not be published. Required fields are marked *

Awards

Compact Cell Imager with Fluorescence,
1mm field of view

£6,864.00

Category: Tags: , , ,
  • Fluorescence, brightfield and darkfield imaging
  • Fluorophores GFP, YFP, PI SYTO9, DS Red
  • Views samples from below in flasks, well plates and Petri dishes or on slides
  • Can be left inside a CO2 incubator and sterilised
  • 1 micron resolution for viewing cells
  • Display images on a phone, tablet or computer without opening the door
  • Instant sharing with colleagues anywhere
  • Fast and simple to use
  • Time-Lapse, Z-Stack and remote view
Download Datasheet
No fluorescence
2 colour fluorescence

Specifications

Epifluorescence Excitation 465nm, emission detected 500-700nm with colour camera to detect green, yellow and red emission.
Suitable for a wide range of fluorophores including GFP, YFP, PI SYTO9, DS Red
Fixed lens and filter cubes so that the microscope is sealed for use inside incubators. Easy sterilisation and cleaning

Epifluorescence: Camera and Fluorescence illuminator are both below the sample.
Field of view 1.2 mm x 0.9 mm
Resolution 1 micron
Maximum magnification Equivalent to x10 objective, 0.25 NA
Working distance 0 to 3mm stage to sample.
Maximum flask height 48mm, taller flasks on request
Illumination Trans illumination modes: Brightfield; Low NA brightfield; High contrast brightfield; Darkfield and Digital phase contrast.
Display (not included) Smart phone, tablet or computer with WiFi Direct connection, no internet connection or router is required
Image sharing Images and videos are stored on the display device for easy sharing. Images can be viewed remotely in Google Photos or any image sharing software. Time-Lapse on Android devices.
ioLight App Free to download from the Apple® or Google Play® app store Embedded web server connects to Google Chrome and most other browsers on any WiFi computer
Microscope makes a WiFi hotspot, no router or infrastructure necessary
Image format 5MP (2592 x 1944 pixels); colour JPG.

BMP and PNG available on the web browser
Video format MPEG-4; colour; up to 1296 x 972; 10 fps
Not available on web server
Z-Stacking Microscope saves images at different focus points which may be stacked using Photoshop, ImageJ or other image software
Weight 1.9kg
Dimensions 210 x 140 x 132mm, Taller flask models are >132mm high
Power Integrated Li-ion rechargeable battery, USB charger supplied.
Power lead is sealed to prevent ingress of the atmosphere
Battery life: 5 hours with constant streaming.
Time-Lapse App for Android & iOS devices enables Time-Lapse image sequences

Requirements

A tablet or phone running iOS 15.0 or Android 8.0 or higher, or a computer with WiFi and Google Chrome (or another web browser)
We recommend newer, faster devices. Older low-performance devices may run the app, but are not recommended.

Demonstration

Product demonstration

What’s in the box?

Your ioLight Microscope
USB charger, international model
Users’ guide and certificate of conformity

Terms of purchase

Payment Credit card or PayPal with order placement online
Delivery 2-4 Weeks
Cancellation Customers may cancel their orders without reason before delivery

Full refund, excluding postage, on the return of any product up to 30 days after receipt
