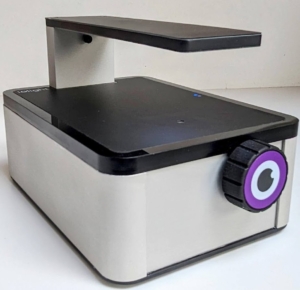

Compact Cell Imager, 1.2 mm field of view

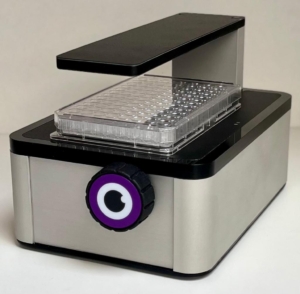

Well plate microscope

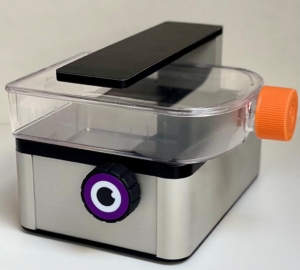

T flask microscope
Incubator cell imager
Rear-side-of-Compact-Cell-Imager

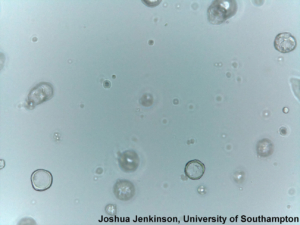

ioLight-Trial-2_adult-mouse-liver-ductal-organoids-WT-iolight
Timelapse-of-HEK-293-cells-iolight

Full Quality Images

To download full quality images please click the button or go to the Gallery menu and choose ‘Image Downloads’.

Download Images

Reviews

9 reviews for Compact Cell Imager, 1.2 mm field of view

  1. R.L. Kothari –

    good need more specification like working temp. humidity etc

    • ioLight –

      Thank you for your comment. The microscope has been used in conditions from the Amazon rainforest to Mount Everest, so these conditions normally affect the operator more than the microscope. It will operate from below 0C to 45C and up to 90%RH as long as the humidity is not condensing. Condensation is the enemy of all microscopes because lenses don’t work well with water on them. You just need to let the microscope adjust to the cold damp environments before using it.
      Please let me know if I can help further.
      Andrew

  2. Cara Wells (verified owner) –

    This microscope works well for capturing images and videos of bovine embryos. We have been very impressed with how easy it is to use, as well as with the image quality. Andrew has answered all of our questions and provided excellent customer support. This product is a great price for the quality.

    • ioLight –

      Thank you Cara for your kind comments, I am glad you enjoy using the microscope.

  3. Diny Fadhilah –

    Hello sir

    Please send me brochure and price for reseller..
    Application microscope inverter cell culture.

    Regards
    Diny

    • ioLight –

      We would be delighted to do that. Please email sales@iolight.co.uk with your contact details.

  4. Arturo Gutierrez –

    Hello, this microscope looks awsome, i wonder whether you can adapt fluorescent illumination in this device. Another doubt is how much will it cost the delivery to Colombia.

  5. Aloha –

    Can this be used for ICSI

    • ioLight –

      Yes, but we will need some more information. Please email support@iolight.co.uk. Thank you

  6. Peter manansala jr –

    Very good

  7. Dr. H. S. Manesh –

    Need portable microscope for semen analysis and time lapse for incubator for embryo culture

    • ioLight –

      Dear Dr Manesh,
      Thank you for your interest and your emails discussing your purchase. We look forward to supporting you with ioLight’s cell imager.

  8. Gaurav –

    Hi,
    Is this available in India??

    • ioLight –

      Yes it is. Please Email info@iolight.co.uk for details of our Indian distributor.

  9. Gaurav Dutt –

    Hi,
    I am working on interaction of various particles on macrophages, and my lab is in requirement of a time laps microscope to view cells in flasks and plates. We would like to view the cells in 20x, and 40x magnification. Your microscope looks amazing and we can use it in co2 incubator.
    I would like to know the cost in India as well we need 20x and 40x magnification. I am contacting you as the Indian vendor is not responding to my email.

Add a review

Your email address will not be published. Required fields are marked *

Awards

Compact Cell Imager,
1mm field of view

£2,880.00

Category: Tags: , , ,

Application

Viewing transparent samples from below in a Petri dish, flask, well plate or cavity slide. The microscope is compact and can be put inside incubators, safety cabinets or glove boxes. The display is outside the chamber, so there is no need to open the door. Time-lapse and Z-stack images can be saved and viewed remotely.

This microscope is ideal for cell culture and other professional laboratory applications. It also can be used as a bench microscope.
Download Datasheet
Add fluorescence

Specifications

The power cable is sealed into the housing to prevent the atmosphere from entering the microscope and can be extended if required.

Magnification Resolution 1µm NA 0.25. Equivalent  to a x10 objective

Field of view approx. 1.2 x 0.9mm
Sample container Petri dish, flask, well plate or cavity side with clear transparent base and lid.
Maximum focal length 3mm stage to sample
Maximum sample (flask) height 48mm. Taller flasks to order
Illumination Top (trans) illumination modes: Brightfield; Low NA brightfield; High
contrast brightfield; Darkfield and Digital phase contrast.
Display Smartphone, tablet or computer. No WiFi infrastructure or router is required.
Image sharing Images and videos are stored on the display device for easy sharing.

Images can be viewed remotely in Google Photos or any image-sharing software.

Time-Lapse images can be recorded on Android devices
ioLight App Free for download from the Apple® or Google Play® app store

Built-in web server available from any computer with Chrome and other browsers
Image format 5MP (2592 x 1944 pixels); colour JPG.

BMP and PNG available on the web browser
Video format MPEG-4; colour; up to 1296 x 972; 10 fps
Time-Lapse App for Android & iOS devices enables Time-Lapse image sequences
Dimensions 210mm deep x 140mm wide x 132mm high

Taller flask models are >132mm high
Weight 1.8kg
Power supply Integrated Li-ion rechargeable battery with USB charger (supplied)
Z-Stacking Microscope saves images at different focus points which may be stacked using Photoshop, ImageJ or other image software’

Requirements

Either a tablet or phone running iOS 15.0 or Android 8.0 or higher, or a computer with WiFi and Google Chrome (or another web browser)

We recommend newer, faster devices. Older low-performance devices may run the app, but this is not guaranteed.

Demonstration

Product demonstration

What’s in the box?

Your ioLight Magnificent Mobile Microscope
USB charger, international model
Users’ guide and certificate of conformity

Terms of purchase

Payment Credit card or PayPal with order placement online
Delivery 2-4 Weeks
Cancellation Customers may cancel their orders without reason before delivery

Full refund, excluding postage, on the return of any product up to 30 days after receipt
